IEC 60320 C7 Angle

Because of its cross-sectional shape, it is often called a figure-8 or shotgun connector.Such connectors are commonly used in small cassette recorders, battery/power-powered radios,desk lamp, speaker, LCD, printer, digital camera, heating bag, power adapter equipment, ect.

Plug Type	3 Wire Connector
Approvels	ETL, KC, PSE.CE, SAA, VDE
Voltage	125V, 250V
Plug / Connector Standards	IEC 60320
Model No.	NTST2

Category: IEC 60320 Power Connectors

Descriptions

Model No.	NTST2
Type	3 Wire Connector
Rated Current	2.5A
Rated Voltage	250V,125V
Standard（s)	IEC 60320
Approvals	ETL,VDE,SAA,PSE.CE，KC
Jacket Material	PVC
Plug Insert Material	PBT/ABS
Plug Pin Material	Copper/Nickel Plasting
Color	Black/White/Customized
Country of Origin	Made In China

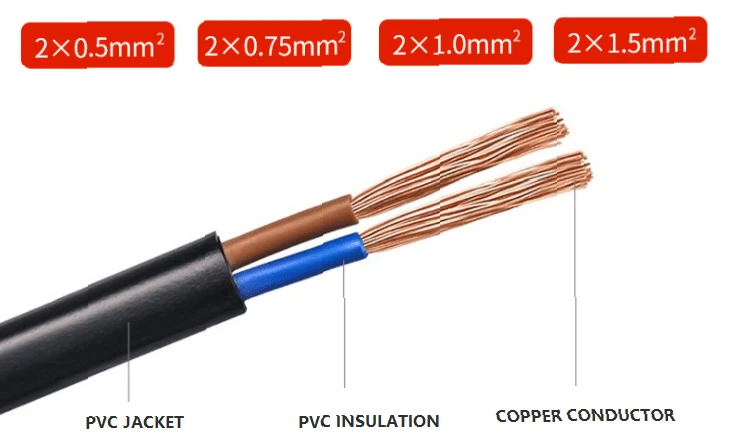

Wire Styles

Gauge/ # Conductors	Cord Type
2×0.5mm²	H03VVH2-F, H03VV-F, H05VV-F, H05RR-F, H05RN-F, H03RT-F, RVV, YZ, YZW
2×0.75mm²	H03VVH2-F,H05VVH2-F,H05VV-F, H05RR-F, H05RN-F, H03RT-F, H07RN-F, RVV, YZ, YZW
2×1.0mm²	H05VVH2-F,H05VV-F, H05RR-F, H05RN-F, H03RT-F, H07RN-F, RVV, YZ, YZW
18/2	SVT, SVTO, SVTOO, HPN, SPT-2, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW
16/2	SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, SPT-2, HPN
