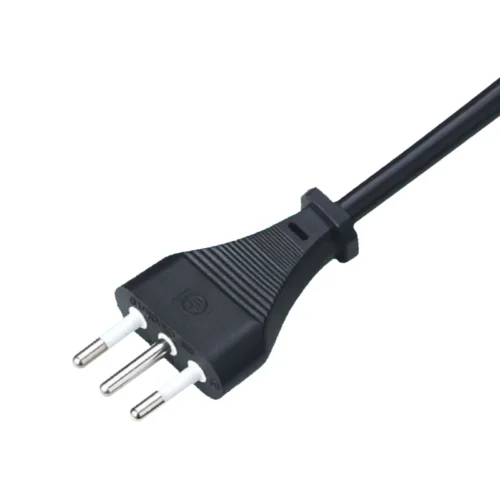

Italy IMQ CEI 23 16 power cord 2 pins 10a plug
Italy power cords have IMQ approvals, L type plugs, their specification are three-pin (the center of the 3 pins are on the same line) or two-pin round type, the voltage is 220~230v, including the 7/16 plugs of continental Europe and Eastern Europe, are implemented in accordance with the manufacturing standard CEI 23-16/VII. The plugs are used in Libya, Ethiopia, Chile and North Africa. they can be plugged in any direction as well.
| Plug Type | C |
|---|---|
| Approvels | IMQ Certified |
| Voltage | 250V |
| Plug / Connector Standards | CEI 23-50 |
| Electrical Rating | 10A |
Description
| Specification | Details |
|---|---|
| Plug / Connector Standard: | CEI 23-50 |
| Maximum Current rating: | 10A |
| Maximum Voltage: | 250V |
| Number of Poles and Wires: | 2 poles, 2 wires |
| Copper Conductor Material: | Oxygen free Copper (OFCU) |
| Outer Jacket Material: | PVC, Rubber, Halogen-Free, Textile braid |
| Blade Material: | Nickel Coated Brass |
| Flammability Rating: | UL 94V-0 |
| Color | Black / White are standards, but any color available customized |
| Environmental Certifications: | RoHS, Reach, PAHs |
| Testing: | Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
| Country of Origin: | Made In China |
| Packing: | Standard Export Carton |
Wire Styles
| Gauge/# Conductors | Cord Type |
|---|---|
| 2×0.5mm² | H03VV-F, H03VVH2-F |
| 2×0.75mm² | H03VV-F, H03VVH2-F, H05VV-F, H05VVH2-F, H05RR-F, H05RN-F, H05V2V2-F |
| 2×1.0mm² | H03VV-F, H05VV-F, H05RR-F, H05RN-F, H05V2V2-F |
Product Packaging Method
Power Adapter Cord Sets Packaging with Export Cartons, Pallets, FCL or LCL, Container by Sea or Air.
