We provide full series NEMA standard power cords to match different usage scenarios:

• NEMA 1-15P: 2-prong ungrounded cord for small home appliancesAmerican Power Cords, NEMA 5-15P Plug to IEC 60320 C19 Connector, Type B, 3 poles Plug, ETL UL Certified

American power cords are standard electrical accessories exclusively designed for North American markets, including the United States, Canada, and parts of South America. Different from UK BS1363 and EU Schuko cables, US power cords follow strict NEMA industrial standards and require authoritative UL safety certification for legal import, retail, and commercial use. This professional guide covers core specifications, certification rules, common connector types, and wholesale purchasing tips to help global buyers select compliant, durable, and cost-effective American power cords.

Core Standard of American Power Cords: NEMA Specification

All formal American power cords comply with NEMA (National Electrical Manufacturers Association) standards, the unified electrical specification for North American low-voltage power connection systems. US grid operates at 125V 60Hz, matching the rated parameters of NEMA plug and cord sets, ensuring stable and safe power transmission for household, office, and industrial equipment.

The most widely used NEMA plug types for wholesale power cords:

• NEMA 1-15P (2-prong): Polarized two flat parallel blades, widely used for low-power consumer electronics such as TVs, speakers, and small adapters. The unequal blade width ensures correct hot-neutral wiring and prevents reverse connection.
• NEMA 5-15P (3-prong): Standard grounded 3-pin plug with two flat blades and one round grounding pin, 15A 125V rated. It is the mainstream plug for desktops, monitors, printers, and most office equipment in North America.
• NEMA 5-20P: 20A high-current specification, suitable for high-power industrial and commercial equipment, supporting stable long-term operation.

Each NEMA model has fixed current and voltage ratings, ensuring full compatibility with local socket systems in the US and Canada.

Why UL Certification Is Indispensable for US Power Cords

UL certification is the core safety threshold for American power cords, governed by the UL 817 standard for cord sets and power supply cords. No uncertified power cords are allowed to enter the US market, sell on e-commerce platforms, or be used in commercial projects.

UL certified American power cords guarantee professional safety performance:

• Strict testing on cable material, insulation performance, and flame retardancy, effectively preventing fire risks caused by overheating and aging
• Standard wire gauge (18AWG/16AWG/14AWG) configuration, stable current transmission without voltage drop or heat generation
• Qualified tensile and bending resistance, adapting to frequent plugging and daily mobile use
• Compliance with US consumer electrical safety regulations, avoiding customs clearance failures and product recalls

For cross-border sellers, importers, and distributors,UL certified American power cords are the basic guarantee for stable market sales and zero compliance risks.

Common IEC Connector Matching for American Power Cords

NEMA plugs are usually matched with universal IEC 60320 connectors to adapt to different electronic devices, covering mainstream consumer and commercial equipment scenarios. Our wholesale American power cords support multiple classic connector combinations:

1. NEMA to IEC C7 (Figure 8)

Ideal for low-power household electronics including televisions, game consoles, audio devices, and small chargers. Compact figure 8 design saves space, lightweight and portable for daily and travel use.

2. NEMA to IEC C5 (Cloverleaf)

Specially customized for laptop power adapters and mini PCs. The cloverleaf connector features stable contact and small size, supporting long-term stable power supply for portable office equipment.

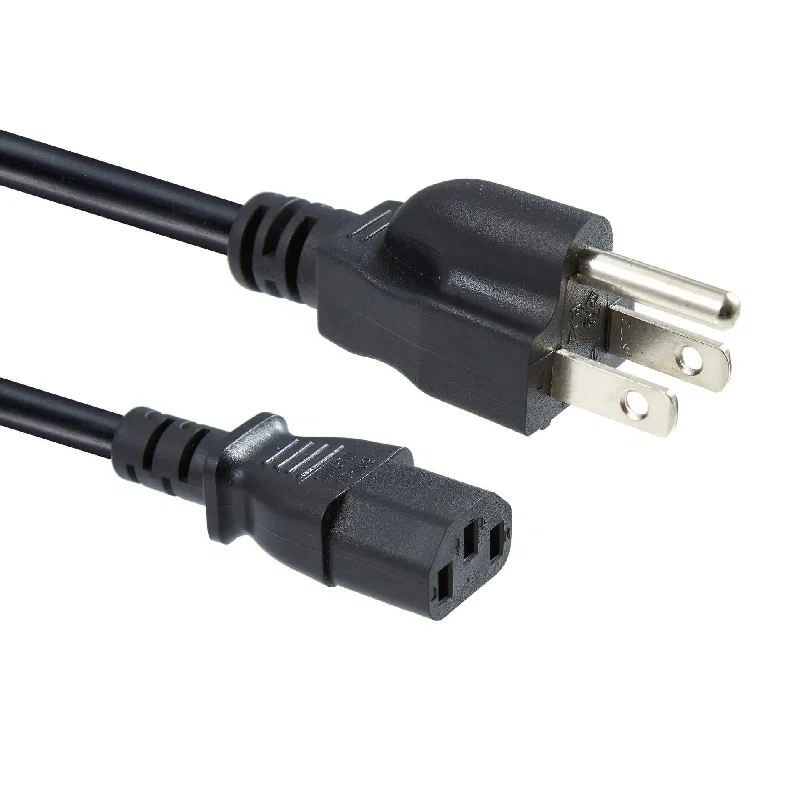

3. NEMA to IEC C13

The most popular commercial specification, widely used for desktop computers, LCD monitors, printers, projectors, and small servers. It supports medium and high current, with strong durability for office and commercial continuous operation. Straight, left angle and right angle C13 connectors are optional for space-saving installation.

Key Advantages of Angled vs Straight American Power Cords

Similar to UK power cords, American NEMA power cords have straight and angled connector options, solving different installation pain points for buyers:

• Straight connector: Suitable for open desktops, ordinary equipment placement, conventional home and office universal use
• Left/Right angle connector: 90° elbow design avoids sharp wire bending, adapts to wall-mounted monitors, embedded equipment, and narrow cabinet installation, preventing cable extrusion damage and extending service life

Multi-specification angled American power cords have higher market competitiveness and are more popular in North American B2B wholesale markets.

Professional Quality Standards for Wholesale American Power Cords

High-quality bulk American power cords must pass multiple strict tests and meet international safety and environmental standards:

• Compliant with NEMA 1-15P / 5-15P mainstream specifications and UL 817 safety standard
• Authentic UL certification, supporting US customs clearance and market inspection
• Pure copper conductor with low resistance, stable power transmission, and low heat generation
• Flame-retardant and anti-aging PVC outer jacket, wear-resistant and durable for long-term use
• Double molded strain relief design at both ends, effectively preventing wire breakage from frequent bending
• RoHS and REACH environmental compliance, non-toxic and eco-friendly

OEM & Wholesale American Power Cords from Factory

As a professional power cord manufacturer, we provide full-seriesUL certified American NEMA power cords, covering NEMA 1-15P and NEMA 5-15P plugs matched with IEC C5, C7, C13 straight and angled connectors. We support one-stop customized services for global buyers.

Customizable parameters: Various wire gauges (18AWG/16AWG), custom cord lengths (0.5m–5m), plug and cable colors, brand logo printing, and neutral export packaging. We support small trial orders and large container bulk orders, with stable stock, fast delivery, and competitive factory wholesale prices, serving North American importers, offline hardware stores, and cross-border e-commerce sellers.

Final Words

When purchasing American power cords, UL certification and NEMA standard compliance are the core judgment criteria. Qualified standard power cords can completely avoid customs detention, market removal, and safety accidents. Choosing factory-direct wholesale customized American power cords is the most cost-effective and reliable solution for long-term bulk procurement.
