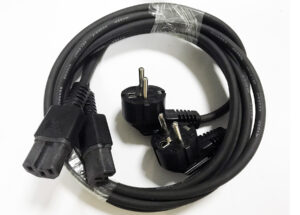

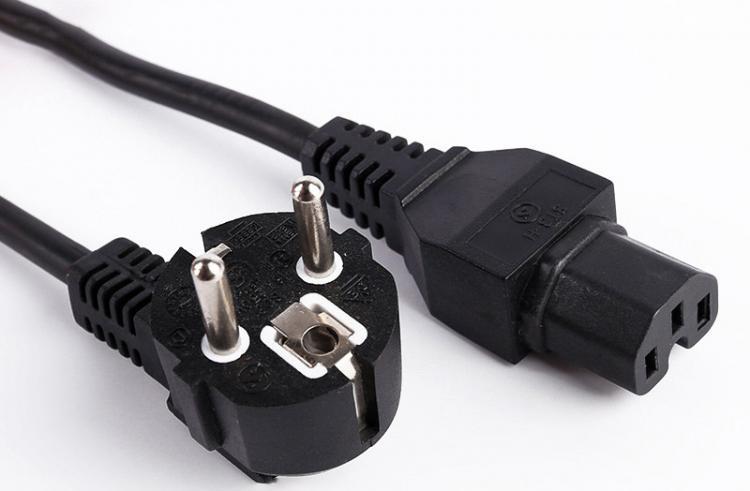

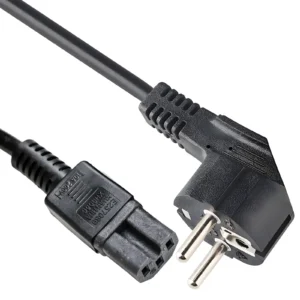

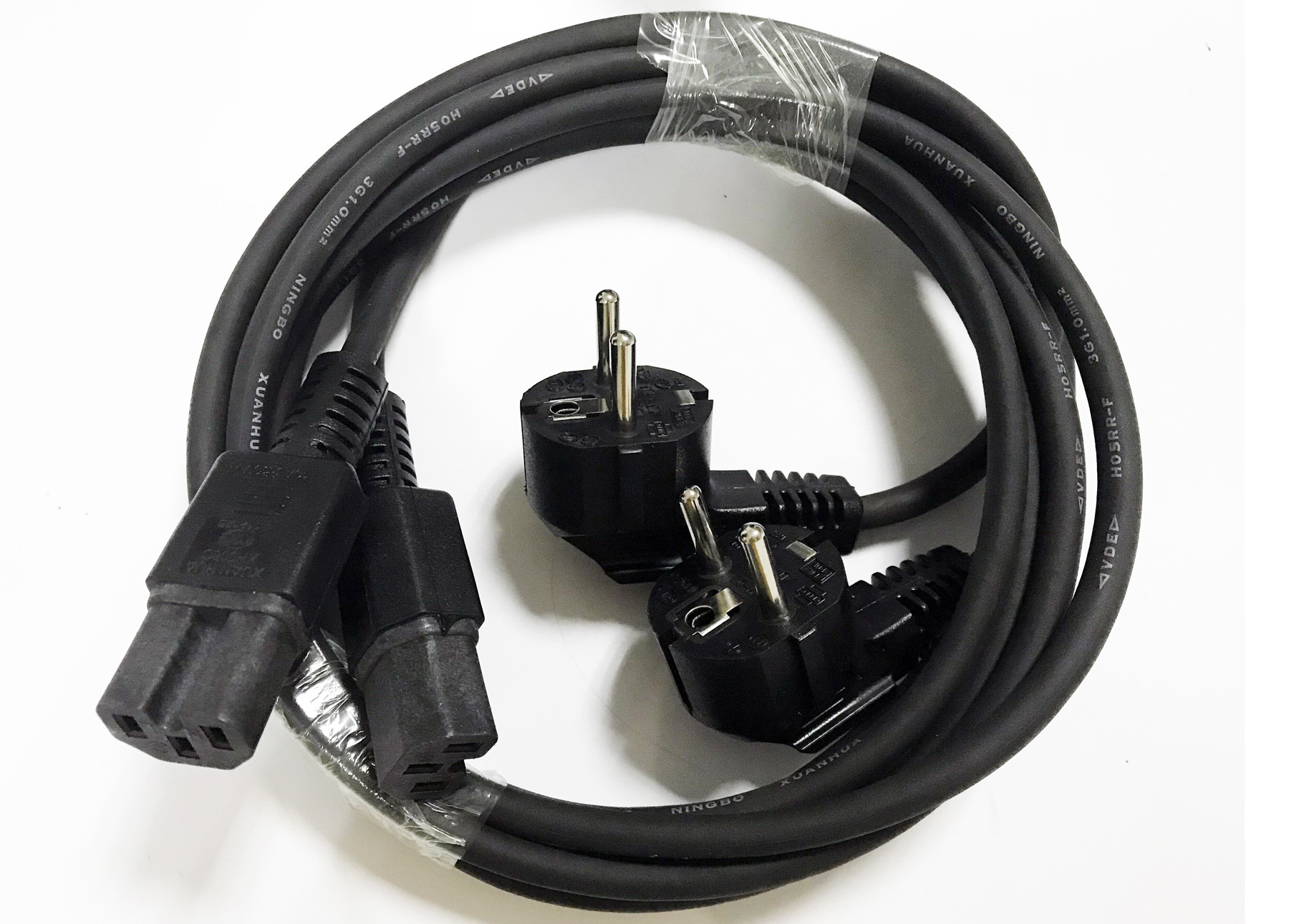

Schuko CEE7/7 to IEC C15 High Temp Power Cord | VDE Approved 105°C EU Plug Cable | Custom Length & Color

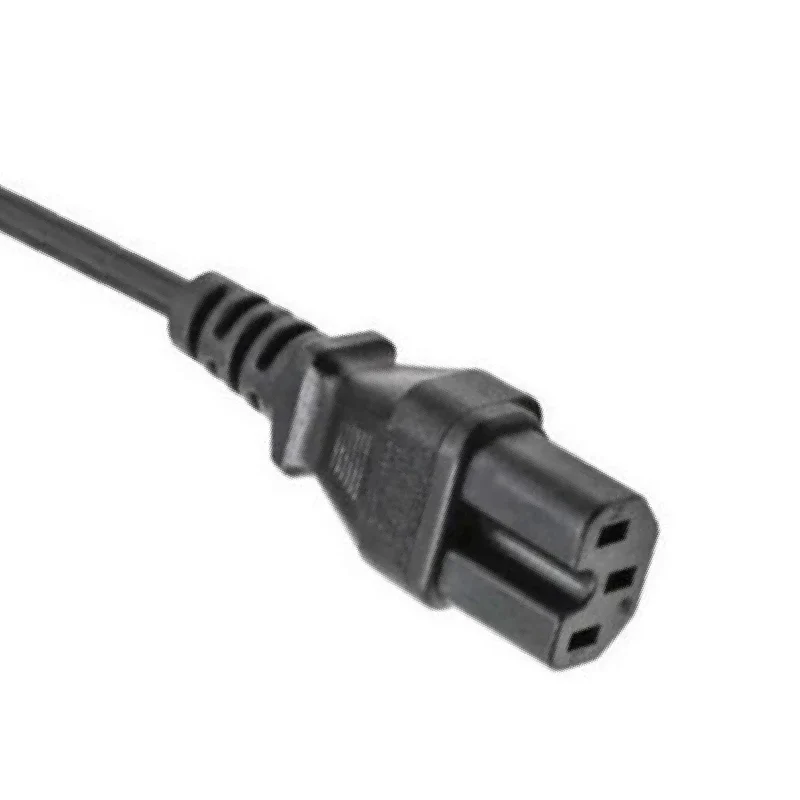

This Schuko CEE7/7 to IEC C15 high temperature power cord is built for equipment operating at elevated temperatures. It features a molded European Schuko CEE7/7 grounded plug on one end and an IEC 60320 C15 high-temperature female coupler on the other.
The cable uses H05V2V2-F heat resistant compound, supporting continuous working temperature up to 105°C, far superior to standard PVC power cords. The C15 connector has a dedicated notch, preventing insertion into ordinary C14 inlet and ensuring safe use for heat-generating devices. The whole cordset holds VDE approval, complies with CE & RoHS standards for European market.
| Approvels | VDE, TUV Certified |
|---|---|
| Electrical Rating | 16A |
| Voltage | 250V |
| Plug / Connector Standards | CEE 7/7 |
Schuko CEE7/7 to IEC C15 High Temp Power Cord SPECIFICATIONS
| Model No. | Schuko CEE7/7 EU 3-pin grounded plug |
| Type | IEC 60320 C15 high temp female coupler |
| Rated Current | 16A~ |
| Rated Voltage | 250V~ |
| Standard（s) | CEE 7/7 |
| Approvals | VDE,CEBEC,DEMKO, F1,IMQVDE,KEMA,NF,OVE,SEMKO/RoHS |
| Jacket Material | PVC |
| Plug Insert Material | PBT/ABS |
| Plug Pin Material | Copper/Nickel Plasting |
| Color | Black/White/Customized |

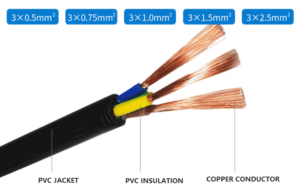

Schuko CEE7/7 to IEC C15 High Temp Power Cord APPLICABLE CABLES
| H03VVH2-F 3X0.5-0.75mm2 | H05VVH2-F 3X0.75-1.0mm2 | H03VV-F 3X0.5-0.75mm2 | H05VV-F 3X0.75-1.5mm2 |
| H05RR-F 3X0.75-1.5mm2 | H05RN-F 3X0.75-1.5mm2 | H05V2V2-F 3X0.75-1.5mm2 | H07RN-F 3X1.0-1.5mm2 |
This high temp C15 power cord is widely used for commercial coffee machines, espresso boilers, water kettles, catering ovens, industrial heaters and high-temperature rack devices. Factory direct supply, OEM & ODM available, support custom wire gauge, length, logo printing and packaging.
Bullet Points
✅ VDE approved Schuko CEE7/7 to IEC C15 high temperature power cord
✅ H05V2V2-F cable, 105°C heat resistance for hot appliances
✅ 10A 250V AC, 3-pin grounded EU Schuko plug
✅ IEC C15 notch design, avoid mismating with standard C14
✅ Reinforced strain relief, anti-bending & long service life
✅ Custom cable length and wire gauge available
✅ CE/RoHS compliant, factory OEM wholesale
Schuko CEE7/7 to IEC C15 High Temp Power Cord is VDE certified EU power cable with 105°C heat-resistant H05V2V2-F jacket. Rated at 10A 250V AC, paired with Schuko CEE7/7 plug and IEC 60320 C15 high-temperature coupler. Designed for commercial catering and heat-generating equipment. Custom lengths & OEM service supported.
Product Packaging Method
Power Adapter Cord Sets Packaging with Export Cartons, Pallets, FCL or LCL, Container by Sea or Air.
Related products
-
IEC C14 to C13 Power Extension Cable, IEC60320 PDU UPS Jumper Cord
-

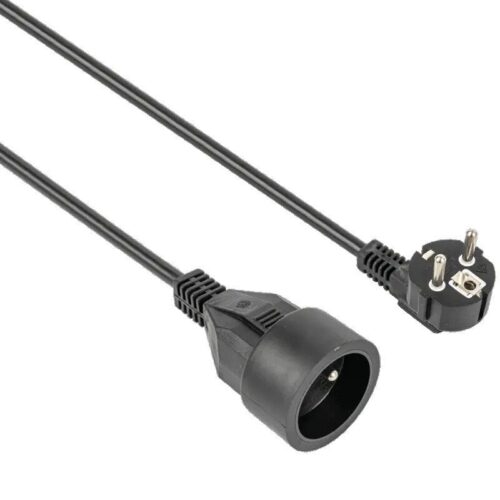

Europe Extension Cords, Europe CEE 7/7 Angle Schuko EU1-15P plug to France CEE 7/3 EU1-16R Socket Outlet, 16A 250V, IP20
-

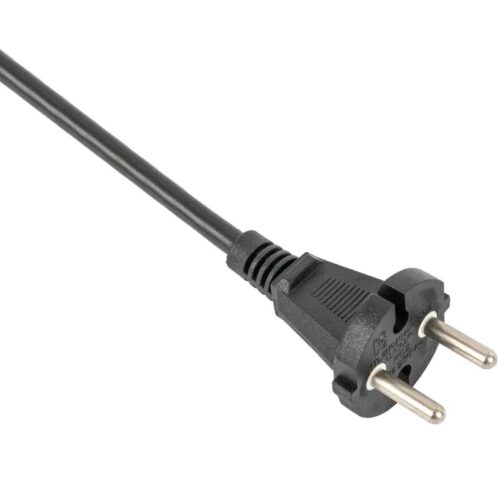

Europe Power Cords, CEE 7/17 Plug, Type C, 2 poles, CEE7/17 EU VDE 16 A 2-POLE PIN 4.8MM PLUG,VDE, TUV Certified
-
