IEC C14 to C19 Power Cord, 10A/16A IEC60320 PDU UPS Server Jumper Cable
This IEC C14 to C19 power cord is a practical step-up adapter cable for data center rack systems. One end is molded IEC 60320 C14 male plug, which plugs into standard PDU or UPS C14 outlets. The other end is molded IEC C19 female coupler to connect high-power servers, storage arrays and industrial devices fitted with C20 inlet.

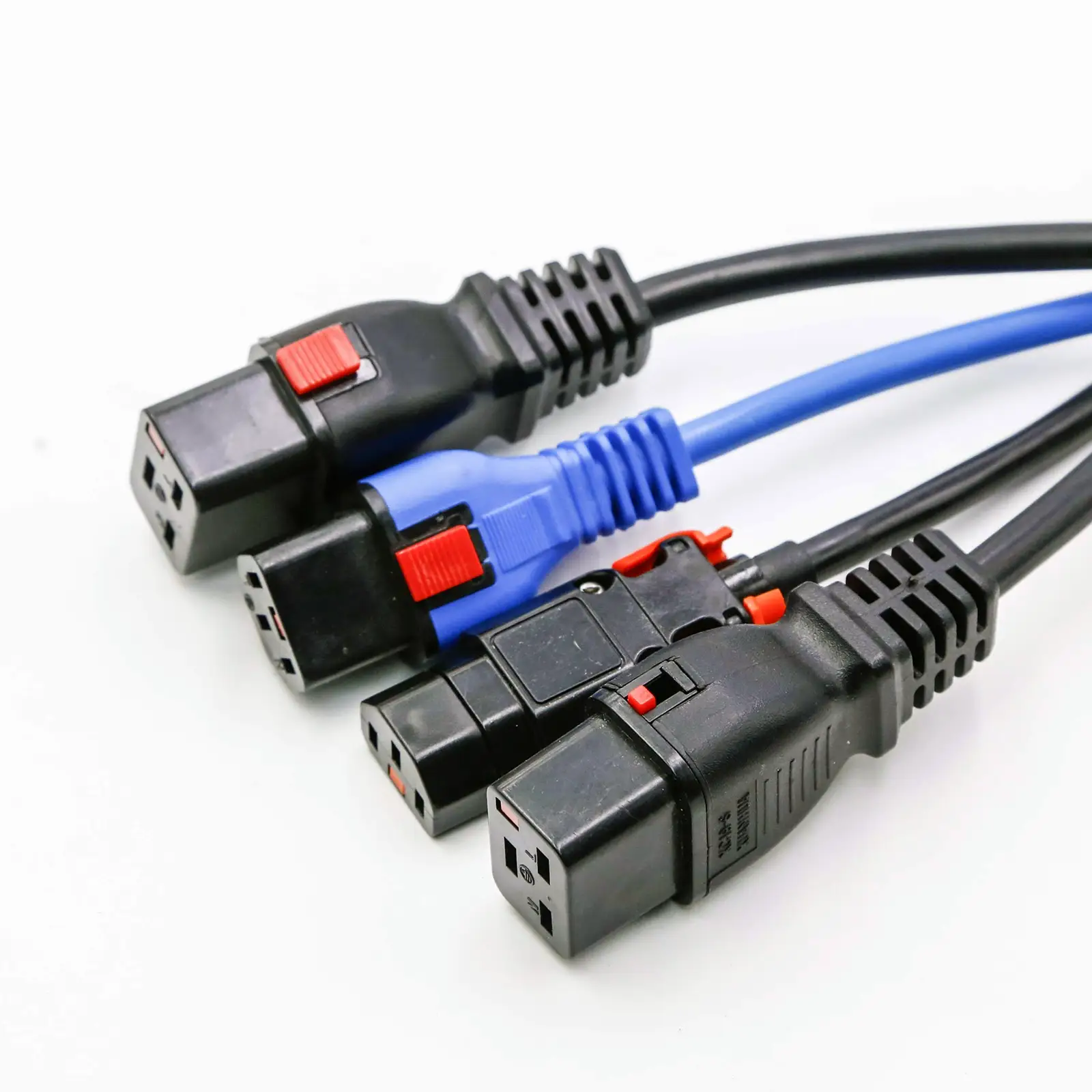

Standard straight C19 in stock, optional upgrade with A-Lock locking C19 coupler to prevent accidental disconnection in vibrating rack environments. Both ends adopt reinforced strain relief to reduce cable bending fatigue and extend service life. Cable uses H05VV-F pure copper PVC jacket, available in 3×0.75mm² /3×1.0mm² /3×1.5mm² for different load requirements. Color options: black, red, blue for circuit identification in dense rack cabinets.
| Plug | IEC 60320 C14 Male |
|---|---|
| Conductor | 100% bare copper |
| Color | Black, red, blue, custom color optional |
| Length options | 0.3m /0.5m /1m /1.5m /2m /3m, custom lengths available |
IEC C14 to C19 Power Extension Cable Descriptions
| Model No. | C14 to C19 |
| Type | 3 Wire Connector |
| Rated Current | 10A,16A,15A |
| Rated Voltage | 250V,125V |
| Standard（s) | IEC 60320 |
| Approvals | ETL,VDE,SAA,PSE.CE，KC |
| Jacket Material | PVC |
| Plug Insert Material | PBT/ABS |
| Plug Pin Material | Copper/Nickel Plasting |
| Color | Black/White/Customized |
| Country of Origin | Made In China |
IEC C14 to C19 Power Extension Cable Wire Styles
| Gauge/ # Conductors | Cord Type |
| 3×0.5mm² | H03VV-F, RVV, YZ, YZW |
| 3×0.75mm² | H03VV-F, H05VV-F, H05RR-F, H05RN-F, H03RT-F, RVV, YZ, YZW |
| 3×1.0mm² | H05VV-F, H05RR-F, H05RN-F, H03RT-F, H07RN-F, RVV, YZ, YZW |
| 3×1.5mm² | H05VV-F, H05RR-F, H05RN-F, H03RT-F, H07RN-F, RVV, YZ, YZW |
| 18/3 | SVT, SVTO, SVTOO, HPN, SPT-2, SPT-3, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW |
| 16/3 | SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, SPT-2, SPT-3, HPN |
| 14/3 | SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, SPT-3 |
Our connector list as below
- Right Angle C13
- C13 Left Angle
- C13 ST3
- C13 Bottom Angle
- IEC C13 90-Degree
- IEC 60320 C13 V lock Female Connector
- IEC 60320 C13 Z Lock Female Coupler
- IEC 60320 C13 A Lock Female Connector
- IEC 60320 C13 Waterproof Connector
- C15 Straight
- C15 Z Lock
- C15 Right Angle
- C19 Right Angle
- C19 Left Angle
- IEC 60320 C19 A Lock Connector
Bullet Points
✅ IEC 60320 C14 male to C19 female step-up power cord, 10A/16A 250V
✅ H05VV-F pure copper cable, reinforced strain relief on both molded ends
✅ Optional A-lock C19 locking connector, anti-pull-out for rack vibration
✅ Step-up adapter to run high-power server from standard C14 PDU/UPS port
✅ Multiple color options for easy circuit identification
✅ Custom cable lengths and wire gauge available
✅ CE/RoHS/REACH compliant, VDE optional, factory OEM wholesale
IEC C14 to C19 Power Cord is IEC 60320 step-up jumper cable rated at 10A/16A, 250V AC. Molded C14 male plug and C19 female coupler, used to convert standard C14 PDU/UPS outlet for high-power servers and storage hardware. Optional A-lock C19 connector, custom lengths and OEM service supported.

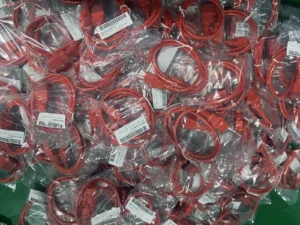

Product Packaging Method
Power Adapter Cord Sets Packaging with Export Cartons, Pallets, FCL or LCL, Container by Sea or Air.
Related products
-
American Power Cord NEMA 1-15P Type A Right Angle Male Plug, 15A 125V
-
Brazil Power Cord,10 A 250 V 2 Pole 2 Wire Non-Grounding Plug Standards:ABNT NBR NM 60884-1, NBR 14136
-
Europe Power Cords, CEE 7/17 Plug, Type C, 2 poles, CEE7/17 EU VDE 16 A 2-POLE PIN 4.8MM PLUG,VDE, TUV Certified
-

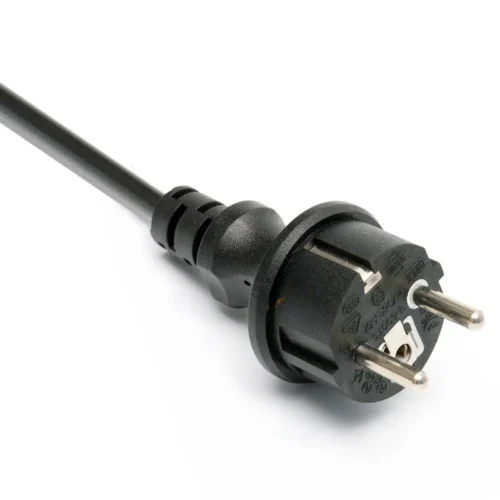

European Waterproof Power Cord, CEE 7/7 Schuko Plug IP44, 16A 250V, 3-Wire Grounded, VDE Certified
