IEC C20 to C19 Power Cords | 16A 250V | For High-Power Servers & PDUs

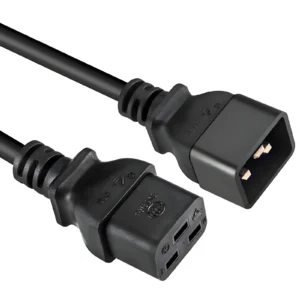

This IEC C20 to C19 power cord is a high-current rack jumper cable built to IEC 60320 standard. One end is molded IEC C20 male plug, the other end is molded IEC C19 female coupler. Designed for high power IT infrastructure to connect rack PDU outlets to servers, storage arrays, UPS and GPU high-density computing equipment.
Standard straight C19 in stock, optional upgrade with A-Lock locking C19 coupler to prevent accidental disconnection in vibrating rack environments. Both ends adopt reinforced strain relief to reduce cable bending fatigue and extend service life. Cable uses H05VV-F pure copper PVC jacket, available in 1.5mm² / 2.5mm² for different current load requirements. Color options: black, red, blue for circuit identification in data centers.
| Model No. | C19 to C20 |
|---|---|
| Certifications | ,ETL, UL, VDE, CE, RoHS, REACH |
| Color | Black, red, blue, custom color optional |
| Length options | 0.3m /0.5m /1m /1.5m /2m /3m, custom lengths available |
IEC C20 to C19 Power Cords SPECIFICATIONS
| Model No. | IEC C20 |
| Connector | IEC 60320 C19 female coupler |
| Rated Current | 16A~ |
| Rated Voltage | 250V~ |
| Standard（s) | CEE 7/7 |
| Approvals | VDE,CEBEC,DEMKO, F1,IMQVDE,KEMA,NF,OVE,SEMKO/RoHS |
| Jacket Material | PVC |
| Plug Insert Material | PBT/ABS |
| Plug Pin Material | Copper/Nickel Plasting |
| Color | Black/White/Customized |
IEC C20 to C19 Power Cords APPLICABLE CABLES
| H03VVH2-F 3X0.5-0.75mm2 | H05VVH2-F 3X0.75-1.0mm2 | H03VV-F 3X0.5-0.75mm2 | H05VV-F 3X0.75-1.5mm2 |
| H05RR-F 3X0.75-1.5mm2 | H05RN-F 3X0.75-1.5mm2 | H05V2V2-F 3X0.75-1.5mm2 | H07RN-F 3X1.0-1.5mm2 |
Our connector list as below
- Right Angle C13
- C13 Left Angle
- C13 ST3
- C13 Bottom Angle
- IEC C13 90-Degree
- IEC 60320 C13 V lock Female Connector
- IEC 60320 C13 Z Lock Female Coupler
- IEC 60320 C13 A Lock Female Connector
- IEC 60320 C13 Waterproof Connector
- C15 Straight
- C15 Z Lock
- C15 Right Angle
- C19 Right Angle
- C19 Left Angle
- IEC 60320 C19 A Lock Connector
Bullet Points
✅ IEC 60320 C20 male to C19 female heavy-duty power cord, 16A/20A 250V
✅ H05VV-F pure copper cable, reinforced strain relief on both molded ends
✅ Optional A-lock C19 locking connector, anti-pull-out for rack vibration
✅ For high power server, GPU rack, PDU, UPS and storage systems
✅ Multiple color options for easy circuit identification
✅ Custom cable lengths and wire gauge available
✅ CE/RoHS/REACH compliant, VDE optional, factory OEM wholesale
IEC C20 to C19 Power Cords are heavy-duty IEC 60320 rack jumper cables rated at 16A / 20A, 250V AC. Molded C20 male plug and C19 female coupler for high-current power distribution in data centers, servers, UPS and rack PDUs. Optional A-lock C19 connector, custom lengths and OEM service supported.
Product Packaging Method
Power Adapter Cord Sets Packaging with Export Cartons, Pallets, FCL or LCL, Container by Sea or Air.
